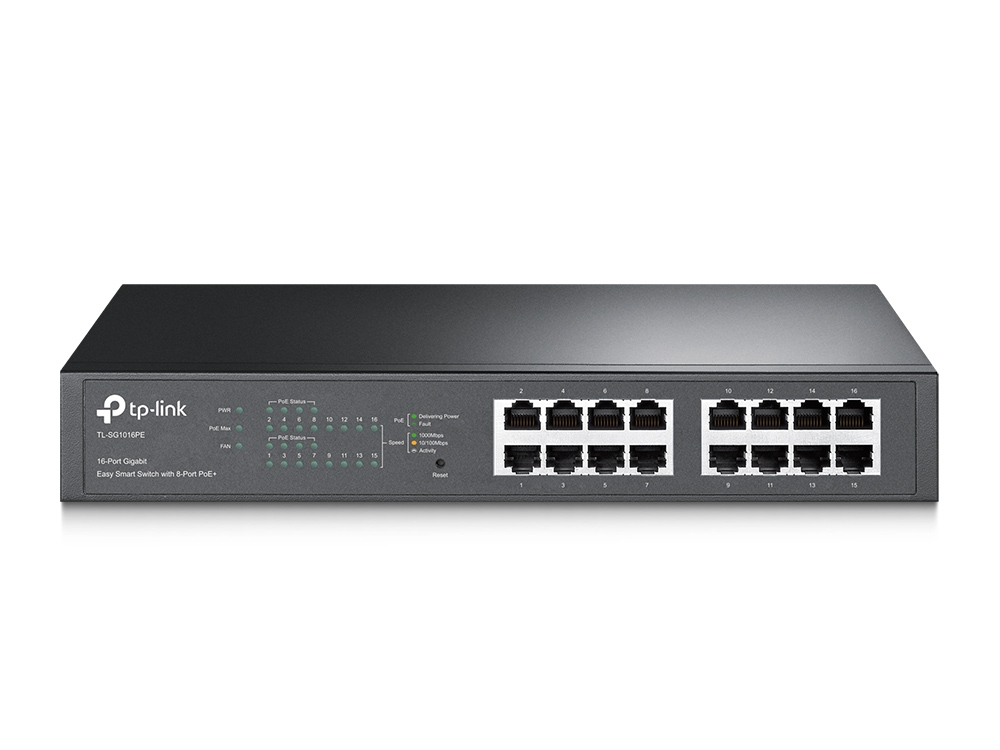

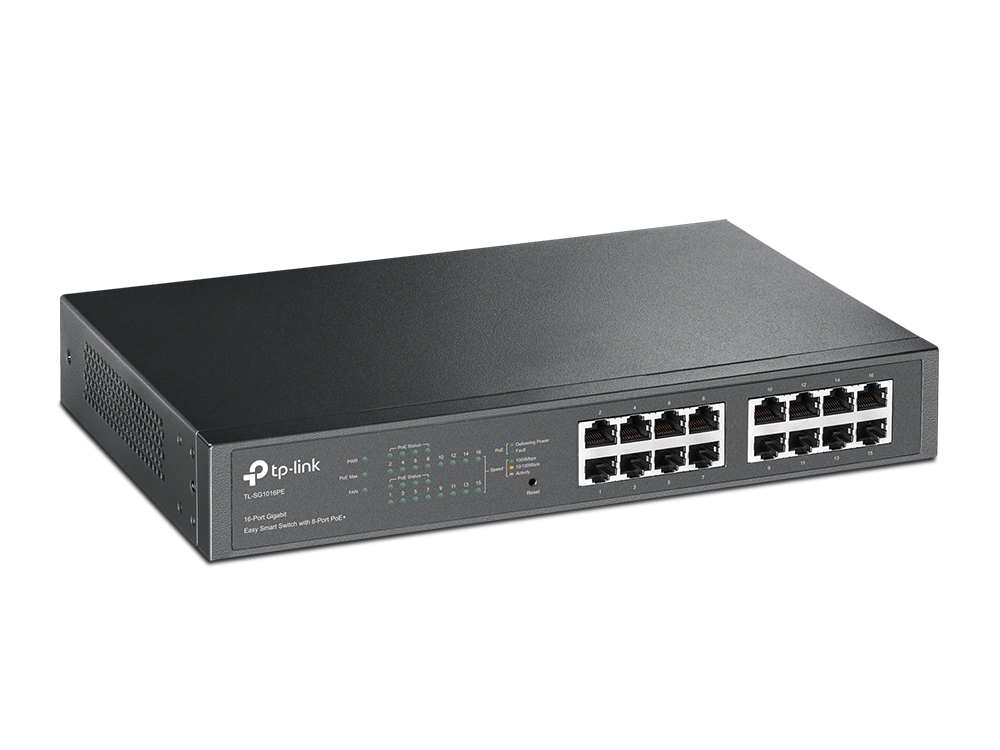

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
|
HARDWARE FEATURES |
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
|
Interface |
16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
|
Fan Quantity |
1 |
|

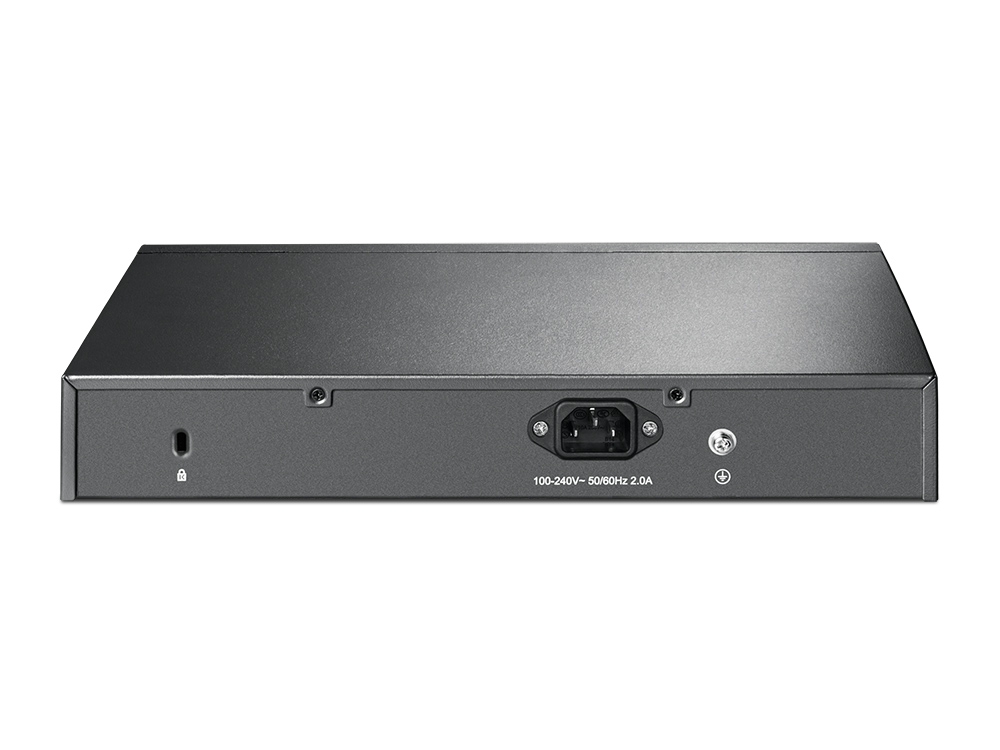

Power Supply |
100-240VAC, 50/60Hz |
|
Power Consumption |
Maximum: 124.4W (220V/50Hz) |
|
PoE Ports (RJ45) |
Standard: 802.3 at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 110W |
|
Dimensions ( W x D x H ) |
11.6*7.1*1.7 in. (294*180*44 mm) |
|
PERFORMANCE |
|
Switching Capacity |
32Gbps |
|
Packet Forwarding Rate |
23.8Mbps |
|
MAC Address Table |
8K |
|
Packet Buffer Memory |
4.1Mbit |
|
Jumbo Frame |
9KB |
|
SOFTWARE FEATURES |
|
Quality of Service |
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control |
|
L2 Features |
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention |
|
VLAN |
Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN |
|
Management |
Web-based GUI
Easy Smart Configuration Utility |
|
Transmission Method |
Store-And-Forward |
|
OTHERS |
|
Certification |
FCC, CE, RoHS |
|
Package Contents |
TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet |
|
System Requirements |
Microsoft® Windows® for running Utility |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
