What This Product Does

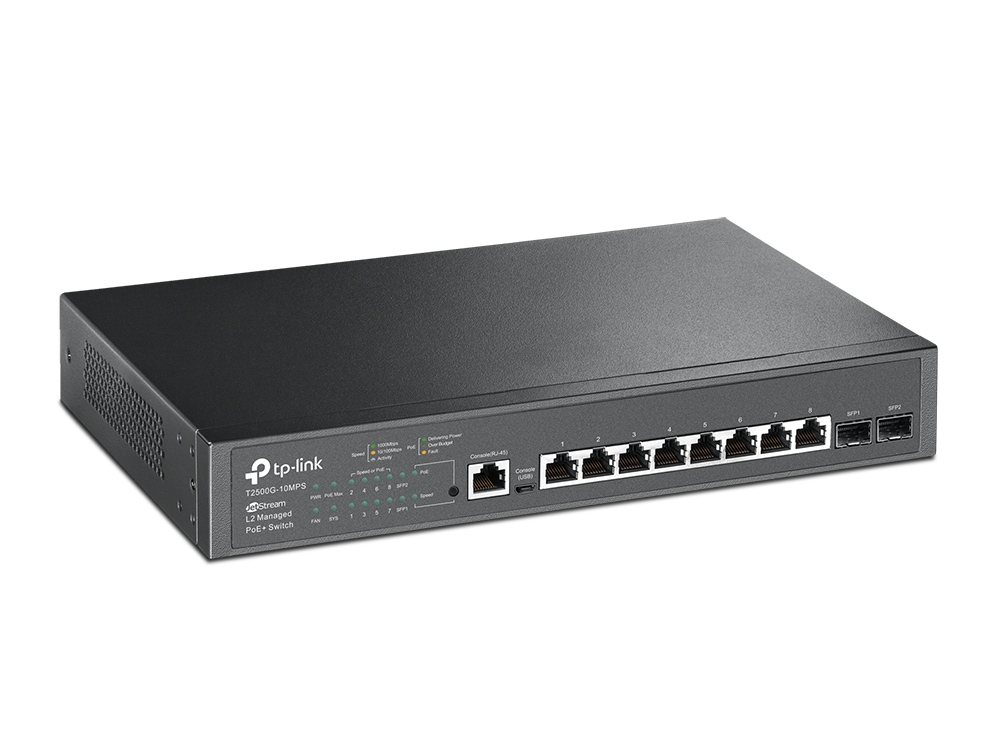

JetStream T2500G-10MPS from TP-Link is a layer 2 managed switch equipped with 8 gigabit RJ45 ports and 2 SFP slots. All RJ45 Ports support the 802.3af/at (PoE+) standard, supplying total PoE power of 116W.
With abundant layer 2 management features supported, the T2500G-10MPS is capable of delivering high throughput to even the most demanding edge-of-network workgroups, while in small networks it can act as a backbone for gigabit switches and high-speed servers. 2 SFP slots provide greater network flexibility.
The T2500G-10MPS is designed exclusively for the networking needs of growing businesses, with an extensive suite of management and security features available. These devices are cost-effective for small and medium-sized businesses, providing ideal solutions for a variety of network scenarios.
|
HARDWARE FEATURES |
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
|
Interface |
8 10/100/1000Mbps RJ45 ports, all supporting PoE+
2 Gigabit SFP Slots
1 RJ45 Console Port
1 Micro-USB Console Port |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m) |
|
Fan Quantity |
1 |
|
Power Supply |
100~240VAC, 50/60Hz |
|
PoE Budget |
116W |
|
Dimensions ( W x D x H ) |
11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm) |
|
PERFORMANCE |
|
Bandwidth/Backplane |
20Gbps |
|
Packet Forwarding Rate |
14.9Mpps |
|
MAC Address Table |
8K |
|
Packet Buffer Memory |
4Mb |
|
Jumbo Frame |
10KB |
|
SOFTWARE FEATURES |
|
Quality of Service |
802.1p CoS/DSCP priority
8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN |
|
L2 Features |
IGMP Snooping v1/v2/v3
MLD v1/v2 Snooping
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
Port isolation
BPDU filtering/guard
TC/Root protect
Loop back detection
802.3x Flow Control
LLDP/LLDP-MED
DHCP VLAN Relay
L2PT |
|
VLAN |
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
GARP/GVRP
VLAN VPN (QinQ)
Management VLAN configuration |
|
Access Control List |
L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID;
Time Range Based |
|
Security |
IP-MAC-Port-VID Binding
AAA
DHCP Snooping
IEEE 802.1X Port/MAC Based authentication, Radius, Guest VLAN
DoS Defend
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
PPPoE |
|
IPv6 |
Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6 |
|
IPv6 Applications |
DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP |
|
Management |
Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
CPU Monitoring
Port Mirroring
Dual Image
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS |
|
OTHERS |
|
Certification |
CE, FCC, RoHS |
|
Package Contents |
Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet |
|
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
