What This Product Does

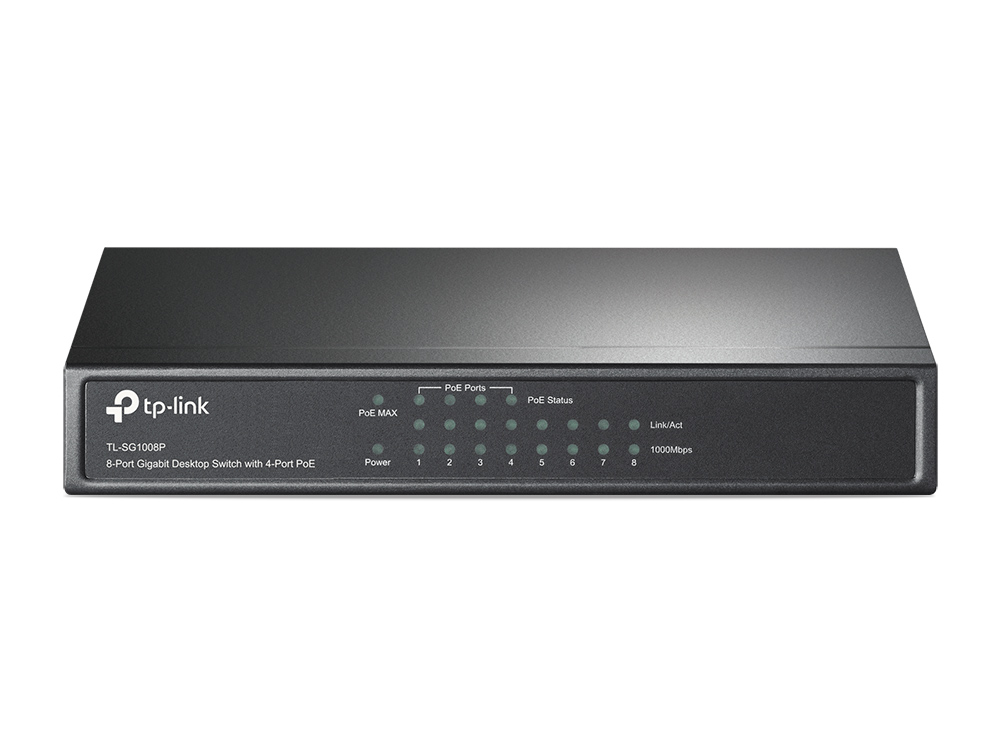

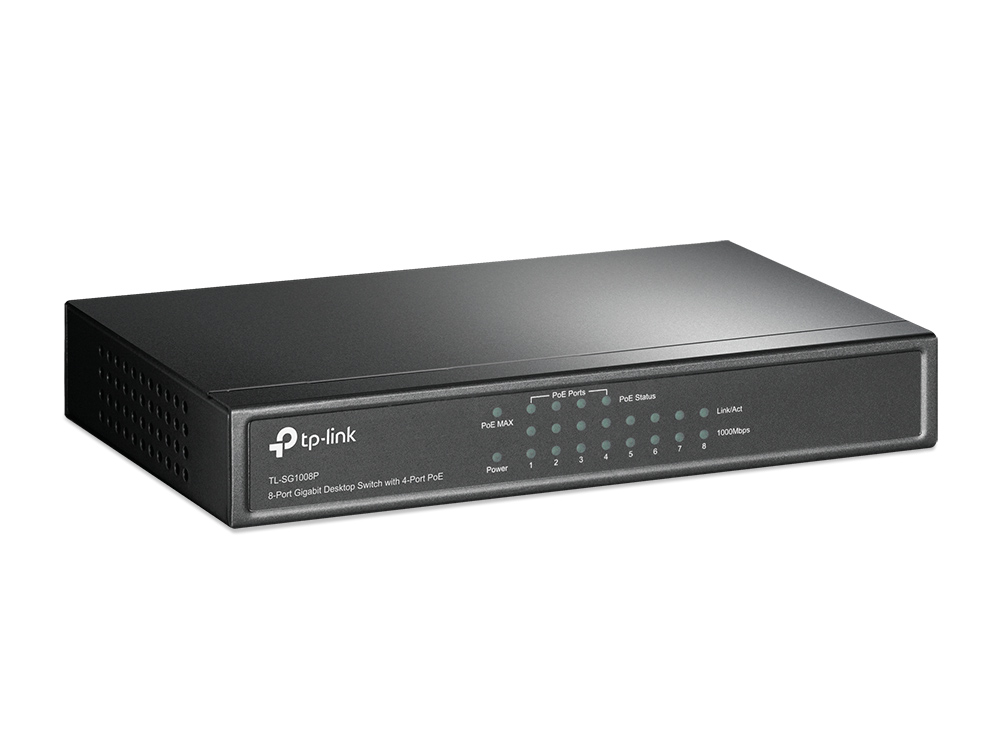

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
How This Product Works

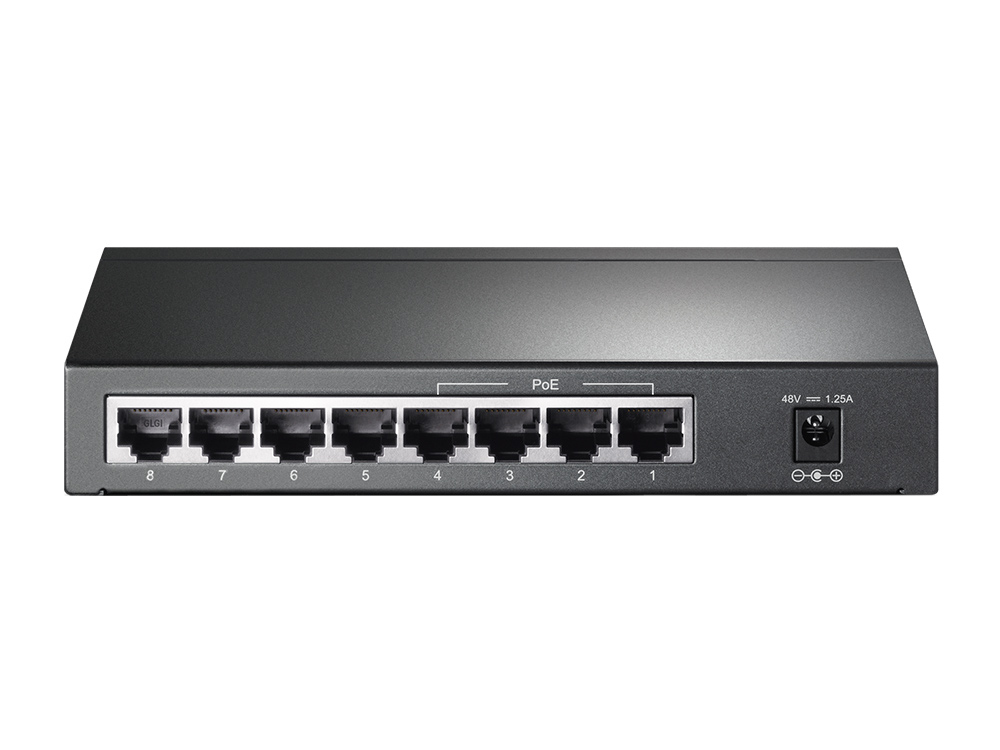

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
HARDWARE FEATURES |
Interface |
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity |
Fanless |
Power Consumption |
65.2W (max. with 55w PoE device connected)
5.5W (max. no PoE device connected) |
External Power Supply |
External Power Adapter(Output: 48VDC / 1.25A) |
PoE Ports (RJ45) |
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 55W |
Backbound Bandwidth |
16Gbps |
Mac Address Table |
4K |
Dimensions ( W x D x H ) |
6.7*3.9*1.1 in. (171*98*27 mm) |
SOFTWARE FEATURES |
Transmission Method |
Store-And-Forward |
Advanced Functions |
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS |
OTHERS |
Certification |
CE, FCC, RoHS |
Package Contents |
TL-SG1008P, Power Adapter, Installation Guide |
Consumption |
65.2W (max. with 55w PoE device connected)
5.5W (max. no PoE device connected) |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing |
