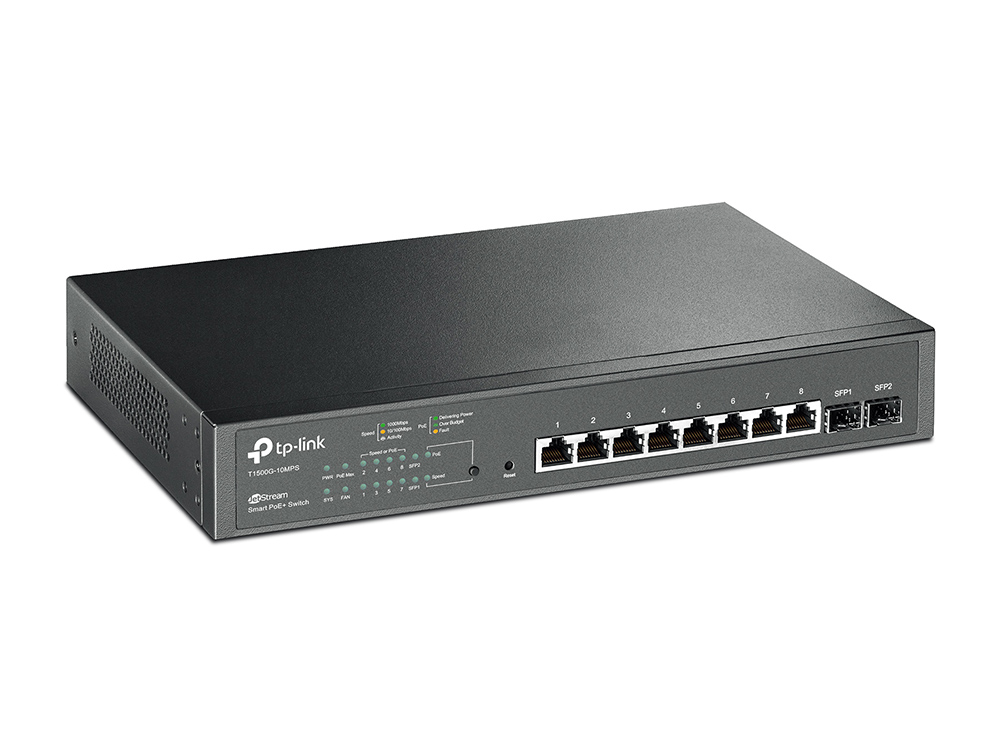

TP-Link JetStream Gigabit Smart Switch T1500G-10MPS is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support the 802.3af/at (PoE+) standard with total PoE power budget of 116W and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.
TP-Link’s JetStream Gigabit Smart Switch T1500G-10MPS is especially designed for the small and medium business networks that require efficient network management. T1500G-10MPS comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service (QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What’s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.
|
HARDWARE FEATURES |
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
|
Interface |
8 10/100/1000Mbps RJ45 Ports, all supporting PoE+
2 100/1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX) |
|
Network Media |
10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
100Base-FX: MMF SFP Module
1000BASE-X: MMF, SMF |
|
Fan Quantity |
1 |
|

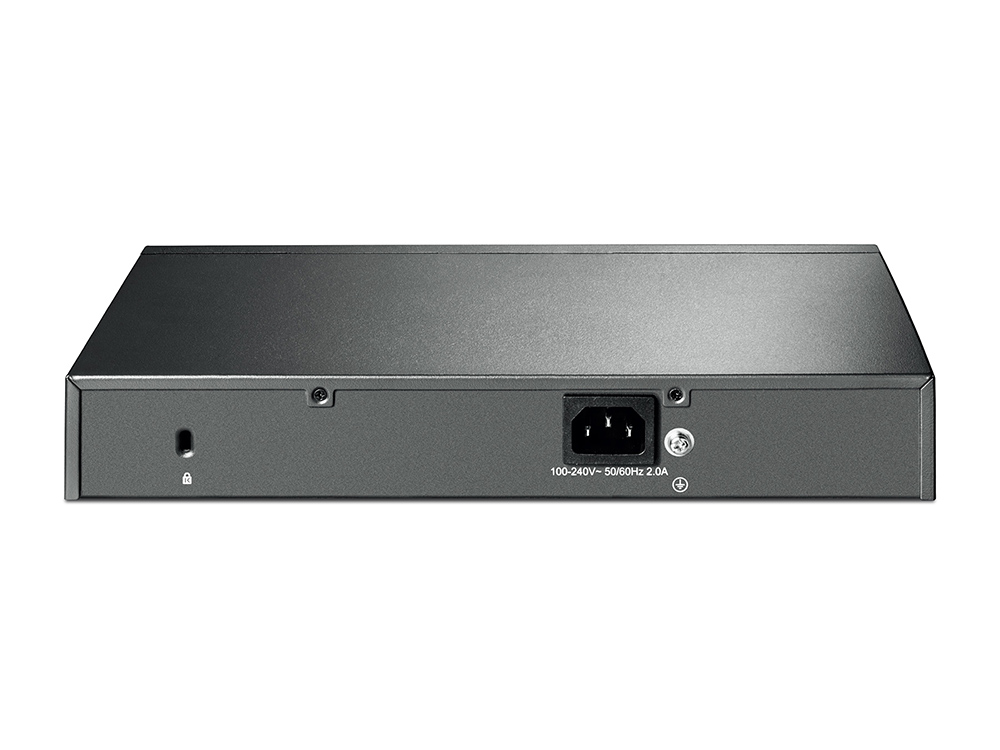

Power Supply |
100-240V, 50/60Hz |
|
Power Consumption |
Maximum (PoE on): 136.6W (220V/50Hz)
Maximum (PoE off): 20.6W (220V/50Hz) |
|
PoE+ Ports(RJ45) |
Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
Power Supply: 116W |
|
Dimensions ( W x D x H ) |
11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm) |
|
PERFORMANCE |
|
Switching Capacity |
20Gbps |
|
Packet Forwarding Rate |
14.9Mpps |
|
MAC Address Table |
8K |
|
Packet Buffer Memory |
512KB |
|
Jumbo Frame |
9KB |
|
SOFTWARE FEATURES |
|
Quality of Service |
802.1p CoS/DSCP priority
4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN |
|
L2 Features |
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
LLDP, LLDP-MED |
|
VLAN |
Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
|
Access Control List |
L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports |
|
Security |
Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend |
|
Management |
Web-based GUI
Command Line Interface(CLI) through telnet
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image |
|
OTHERS |
|
Certification |
CE, FCC, RoHS |
|
Package Contents |
T1500G-10MPS
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet |
|
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
